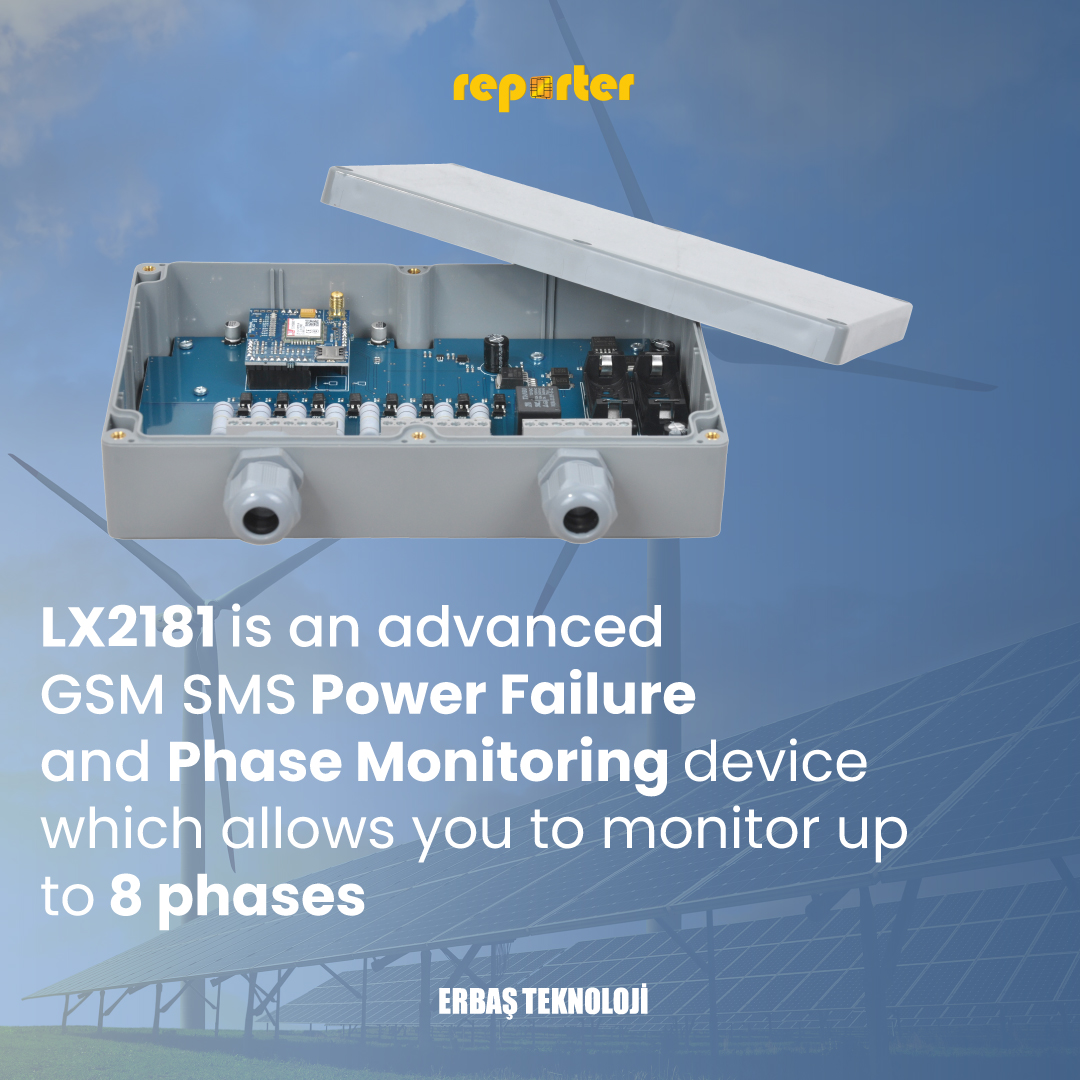

LX2181 is an advanced GSM SMS Power Failure and Phase Monitoring device which allows you to monitor up to 8 phases.

It will send SMS and optionally call up to 8 numbers in case any of the phase line loss or restoration.

With a single Reporter device, and without any additional equipment, you will be able to monitor; mains power failure, generator/ups operation status, 3 phase system phase losses, leakage current relay status, fuses and up to 8 different phases individually.

Additionally, you can control its integrated relay by sending SMS, Free Call or Call & Touch Tone Press. Thus, you will be able to activate any alarm / siren / electrical equipment or deactivate them.

Usecases:

• 3-phases systems
• Up to 8 phase fuse monitoring
• System / server rooms
• Generator / UPS backup systems
• Factories / production plants
• Chicken / fish farms
• Egg incubation
• Milk production plants and milk tanks
• Cold storages
• Medicine refrigerators and critical medical equipment
• Wind and solar power production areas

LX2181 Features

• 8 x 230VAC/110VAC high voltage phase / neutral inputs
• 1 x 10A 230VAC high capacity, dry contact relay outputs
• Power failure alarm and up to 8 phases monitoring
• 8 admins (receives alerts, makes configurations, and controls relays)
• Set input (phase lines) delays
• Easy set-up with single SMS
• Change SMS text contents
• Instant status query
• Configurable keep alive / heartbeat test message periods
• Replaceable antenna SMA type
• IP67 water & dust proof industrial enclosure
